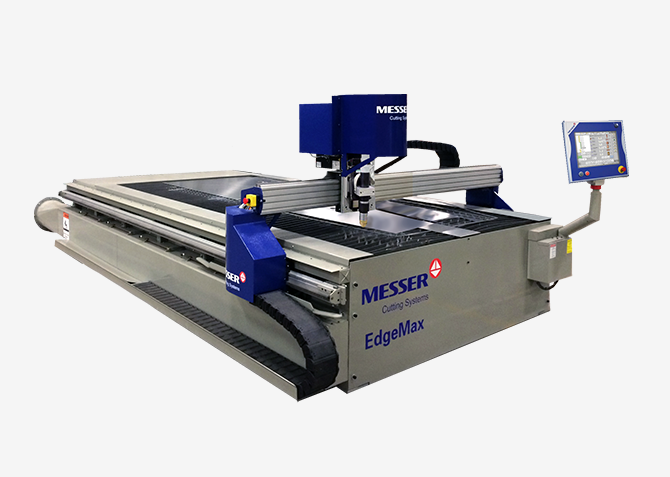

EdgeMax
Drilling and Milling Powerhouse

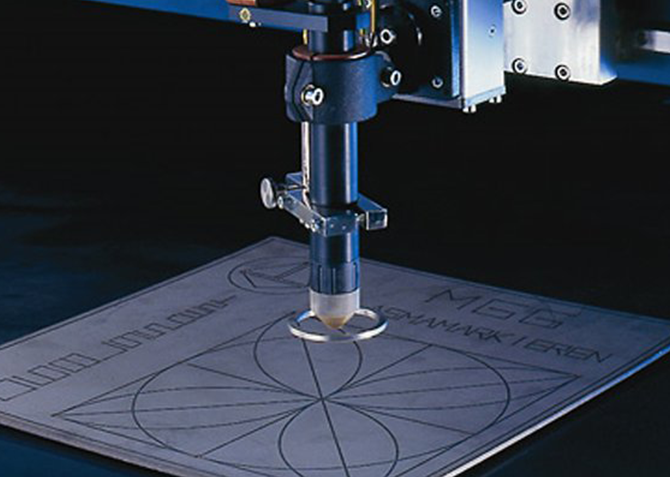

The EdgeMax is a multi-process Messer cutting machine that can be equipped with multiple carriages up to five separate processes including precision plasma, oxyfuel, drilling, milling, and markers. The EdgeMax has enhanced linear ways, long-life band drives, and larger end trucks. It provides high accuracy, repeatability, and durability.
A total of four separate tool stations may be installed. This plasma cutter delivers clean, smooth cut part edges, precise cut holes, with high accuracy and repeatability. The EdgeMax includes linear motion ways and state-of-the-art AC servo drives provide dependable machine tool performance.

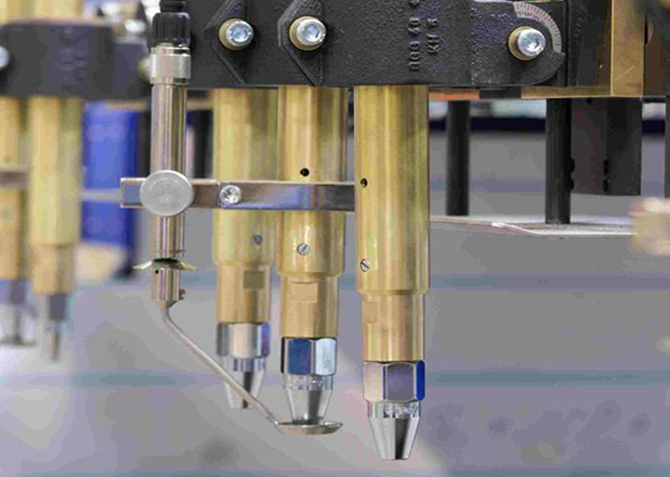

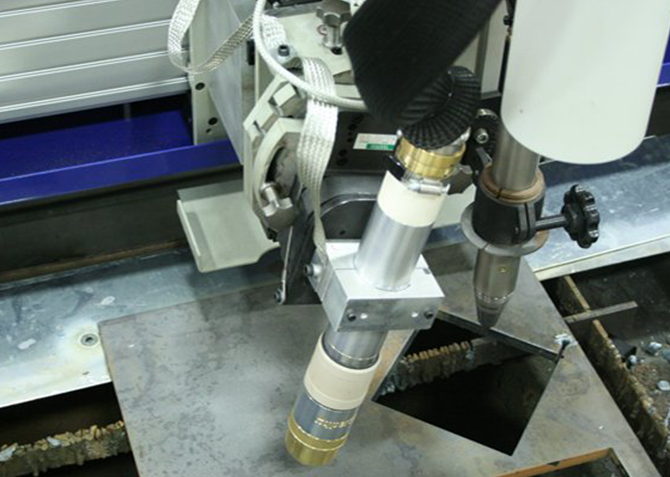

The rugged beam construction makes it tough enough to keep cutting, even through three shifts, and offers the strength and stability for maximum accuracy and repeatability. It plasma bevel cuts, oxy-fuel bevel cuts, drills, and mills and it also has chip vacuum extraction and collection.
- Multi-process cutting machine.
- Drilling up to 2.5″ (63.5mm) diameter, and tapping up to 1 1/2″ (38.1mm) diameter.
- Milling.
- Includes linear motion ways and state-of-the-art AC servo drives.
- Cutting width: 12′ (3.657m) to 28′ (8.534m).
- Cutting length: up to 200′ (60.69m).
- Chip collection system.
- Material Thickness Capacity: 26 ga. to 8″ (203.2mm) dependent on process.
- Materials Processed: Steel, Stainless Steel, or Aluminum.

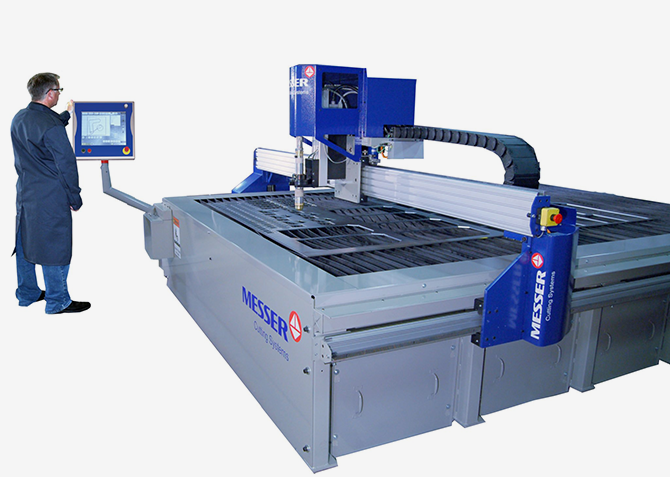

- GlobalControlPlus easy to use touchscreen interface.
