PlateMaster II

PlateMaster II

Your Path to Profit

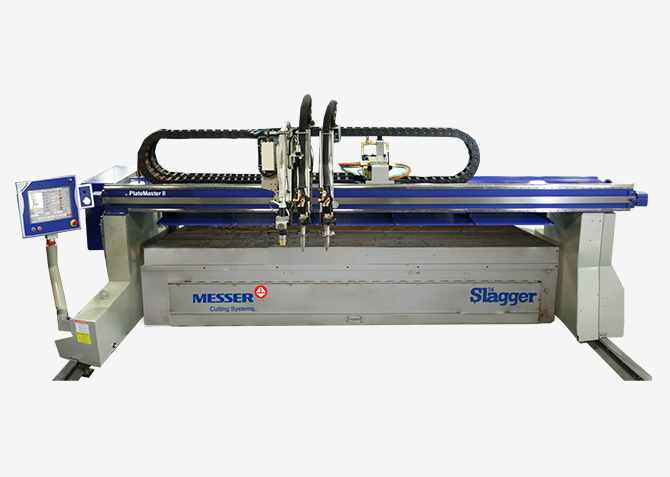

Messer Cutting Systems’ PlateMaser II is an economical solution for plate cutting needs. Rugged floor-mounted rails are machined from 90 lb/yd crane rail stock and heavy, internationally gusseted end trucks support the dual box beam for smooth motion.

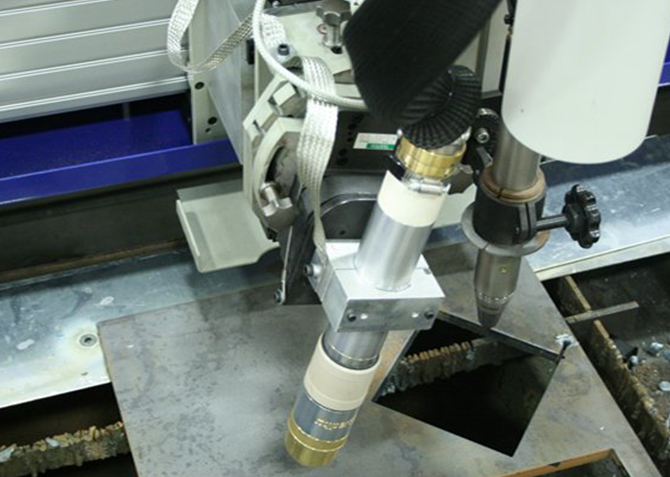

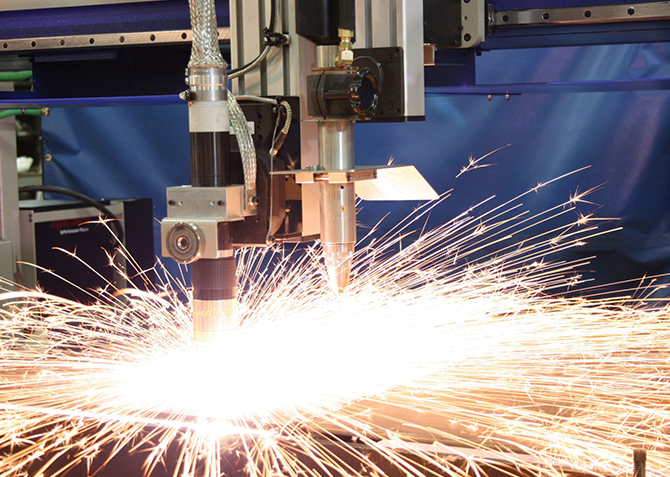

• Precision plasma up to 800 amps.

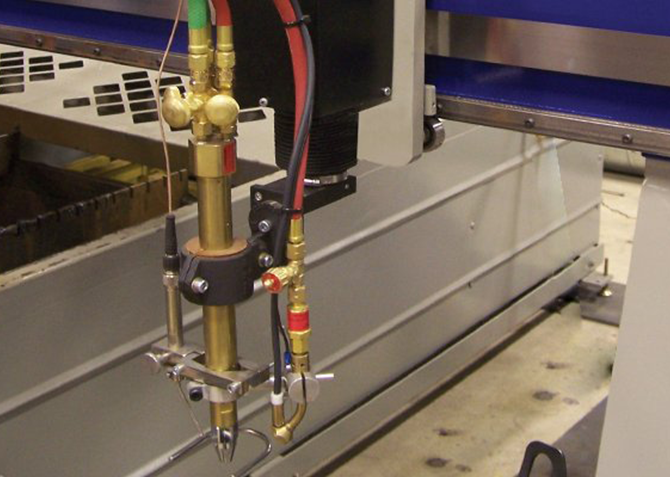

• Oxy-fuel cutting.
• Travels at a rapid speed of 1400 IPM.
• Machine widths: from 6′, 8’ to 12’ ( 1.82, 2.5m to 3.657m). Lengths from 10’ to 72’ (3m to 21.9456m).
• Material Thickness Capacity: Plasma 26 ga. to 6″ (52mm) depending on plasma and material, 1/8″ to 12″ (3mm to 305mm) with oxyfuel.
• Materials processed: mild steel, stainless steel, and aluminum.
• GlobalControls.

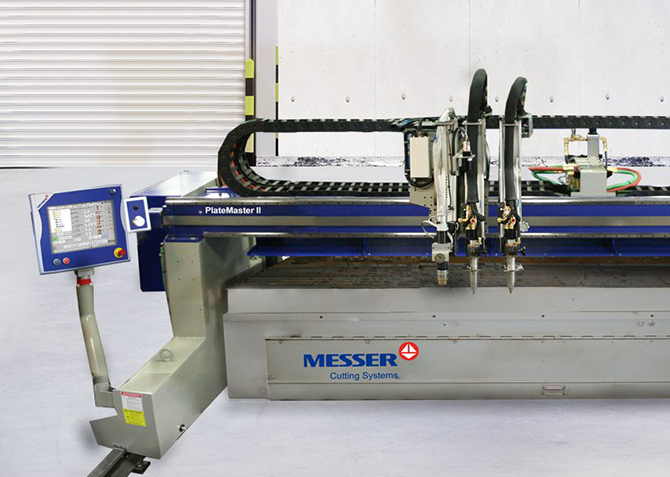

• Left hand mounted control tilts and swivels for operator comfort.
