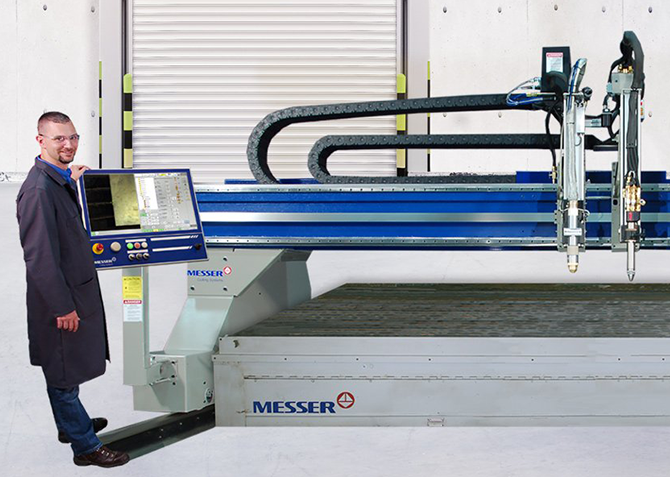

Titan III

Titan III

Powerful Productivity

The Titan III features linear ways in the Y-Axis, along with a rack and pinion design. Wider end trucks allow for the electrical cabinets to mount within the truck for better protection against the harsh cutting and heat environments as well as providing a cleaner look to the machine.

• Cutting widths: 6′ to 16′ (1.82 m to 4.876 m).
• Cutting lengths: up to 150′ (45.72 m).
• Machine motion accuracy +/- .010″ (.254 mm) accuracy, .010″ (.254 mm) repeatability. Compensated machine motion in 72″ (1.82 m).
• Cut material from 26 gauge to 8″ (20.32 cm) plate thickness.
• Positioning speeds up to 1,700 IPM.
• Global ControlPlus Windows® based with easy to use operator interface with a touch screen.
• Up to eight torch stations (maximum two plasma stations).
• Right or left hand mounted control console with tilt and swivel for operator comfort.
• High productivity SL lifters.
